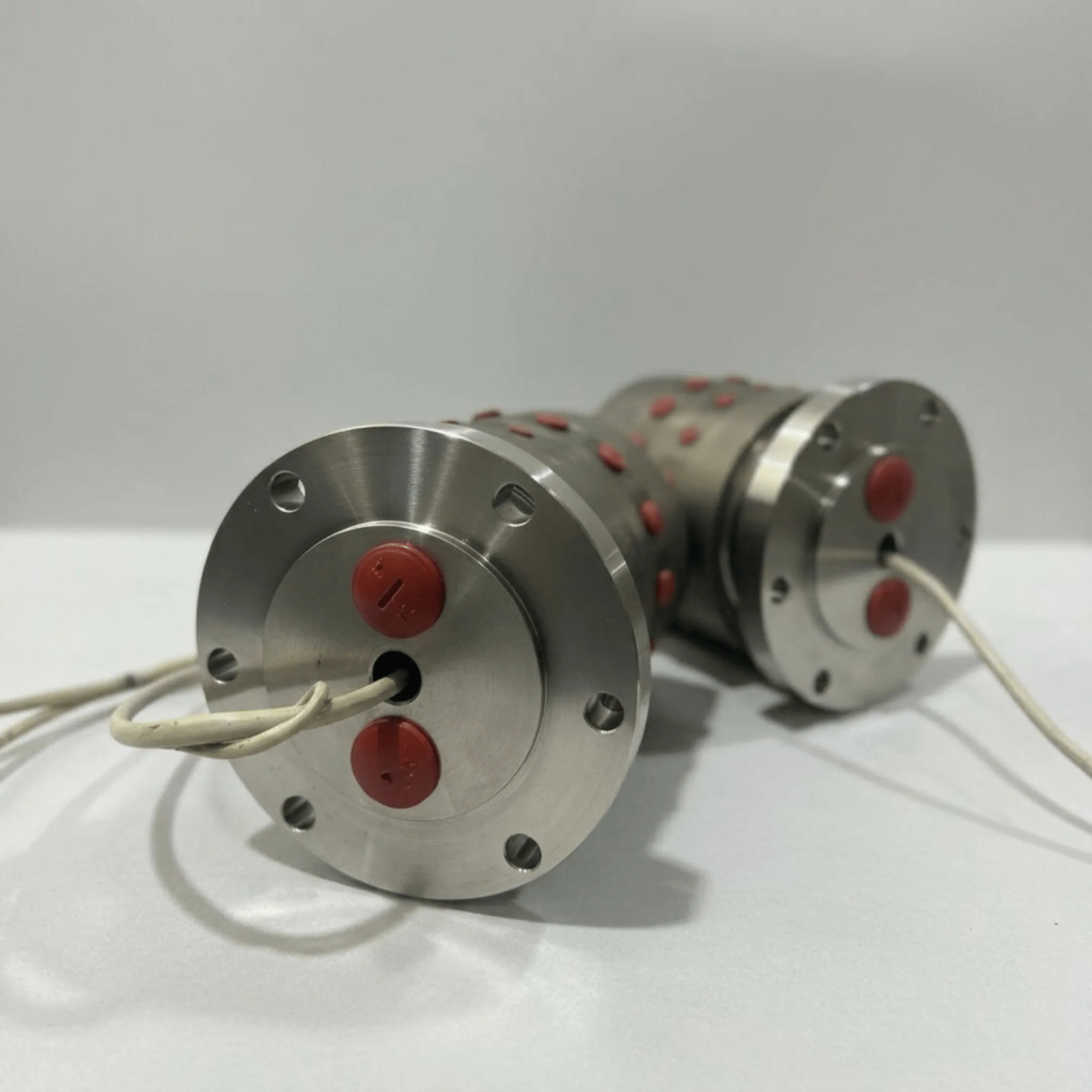

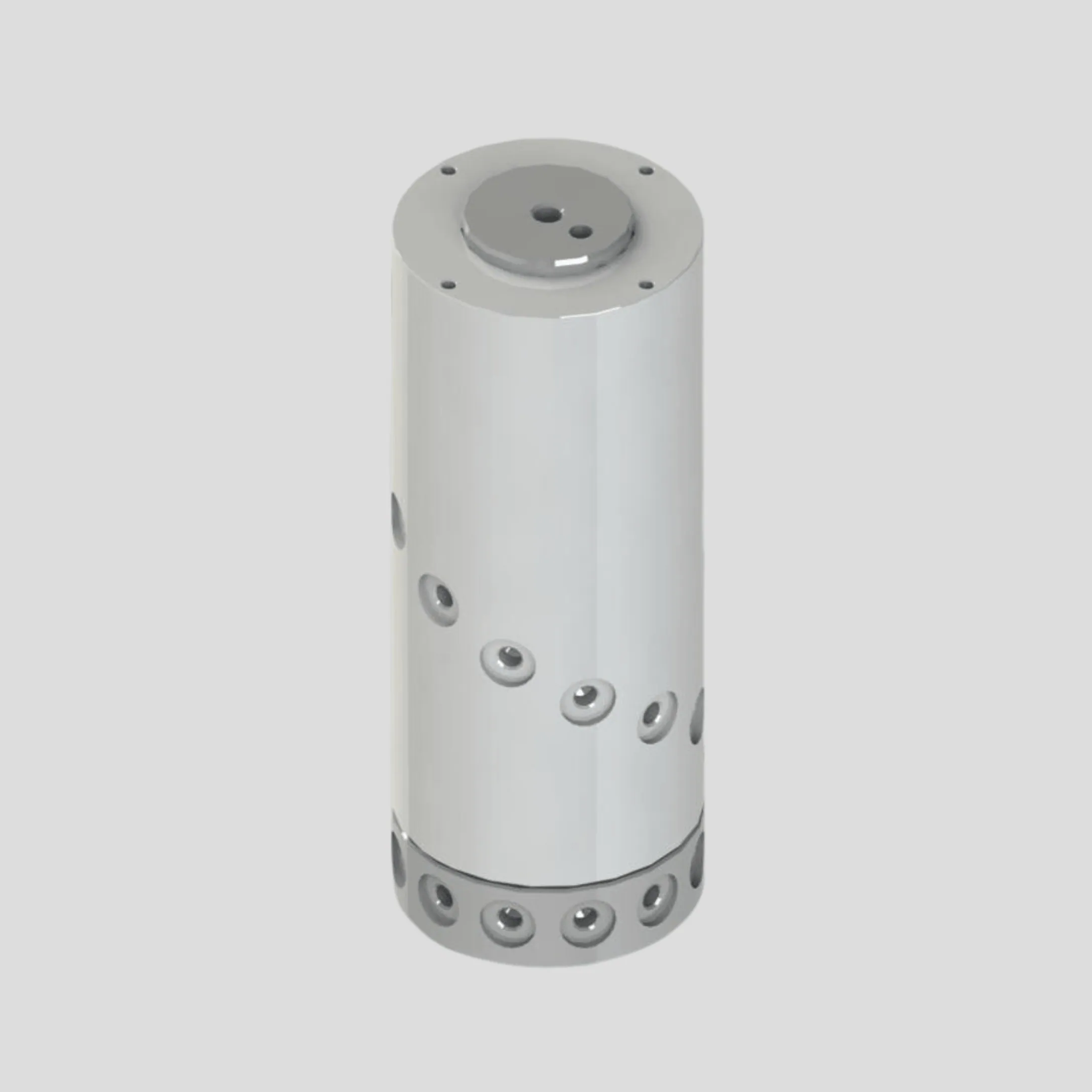

Multi Port Rotary Joint
Experience unparalleled performance with our advanced multi-passage rotary joint technology. Designed for demanding industrial applications, our rotary joints deliver seamless fluid transfer across rotating interfaces with exceptional reliability and minimal maintenance.
Key Features
- Multiple Passages: Support for 2-48 independent fluid passages in a single compact unit, maximizing efficiency and reducing system complexity
- High-Speed Operation: Engineered to operate reliably at speeds up to 3,000 RPM with minimal wear and vibration
- Superior Sealing: Advanced mechanical seal technology ensures leak-free operation even under high pressure and temperature conditions
- Versatile Media: Compatible with water, hydraulic oil, compressed air, coolants, and various industrial fluids
- Durable Construction: Precision-machined from hardened steel and corrosion-resistant alloys for extended service life
- Easy Maintenance: Modular design allows for quick inspection and seal replacement without complete system shutdown
Specifications
| passage configuration | 2 to 48 passages |
| maximum pressure | Up to 3,000 PSI |
| operating temperature | -40°C to 200°C |
| maximum speed | 3,000 RPM |
| materials | Stainless Steel, Carbon Steel, Brass |
| seal types | Carbon, Silicon Carbide, Ceramic |
| port sizes | 1/8" to 2" NPT/BSP |
| mounting options | Flange, Threaded, Custom |
Applications
- Industrial Automation
- Manufacturing Equipment
- Packaging Machinery
- Material Handling Systems
- Process Industries
- Rotating Equipment
Need Customization?
We offer customized solutions for specific requirements. Contact our engineering team.
