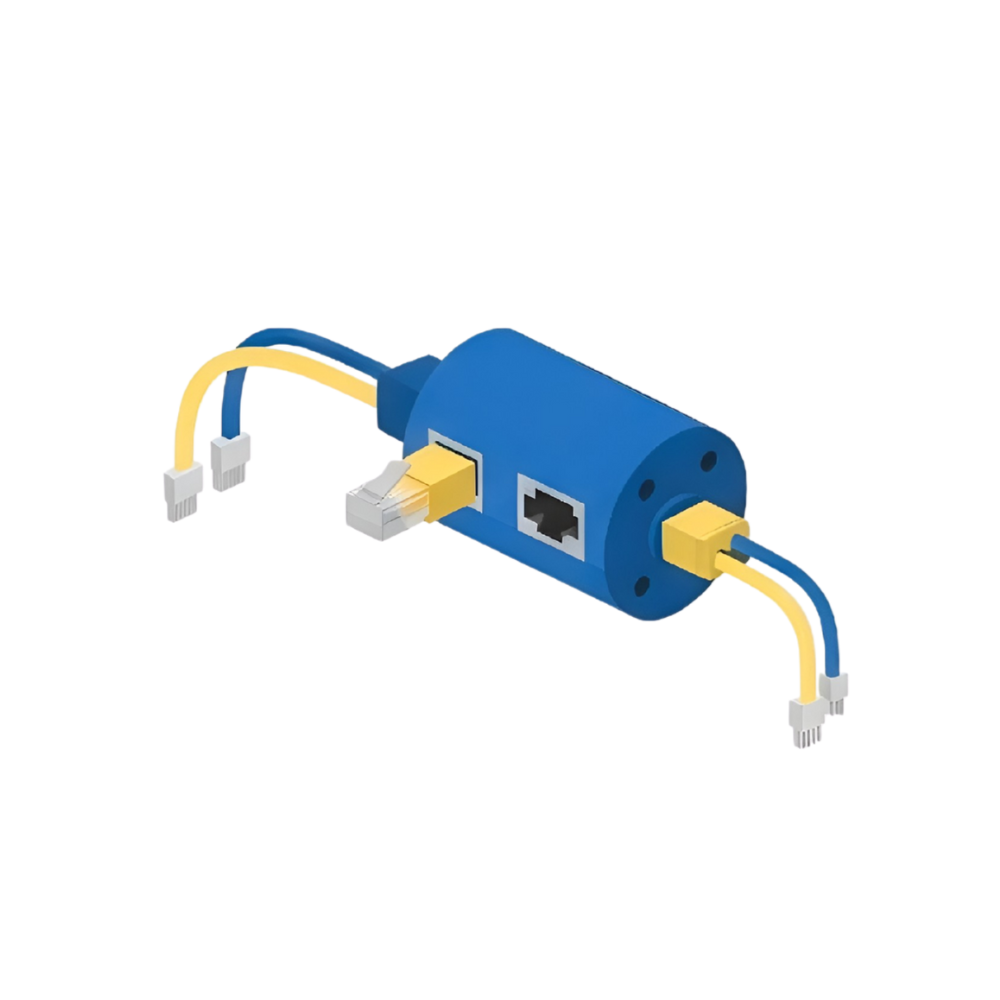

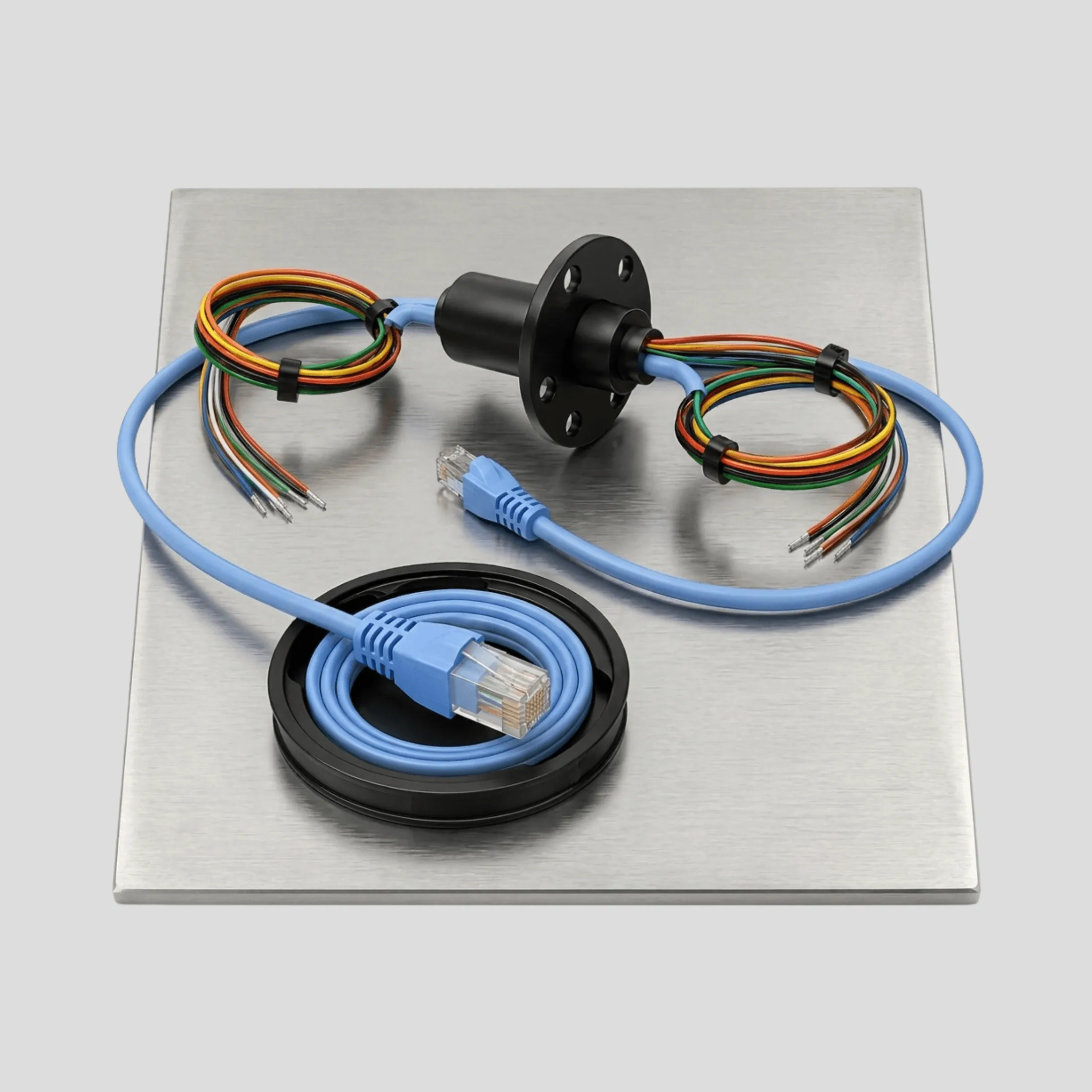

Ethernet Slip Ring

Specifically designed and shielded to reliably transmit high-speed 100BASE-T or 1000BASE-T data signals.

Features

Specifically designed for Ethernet
Proper shielding for signal integrity
100BASE-T support
1000BASE-T support
High-speed data transmission

Applications

High-definition video surveillance Serial communication Industrial automation control Various network cables and interface transmissions

Need Customization?

We offer customized solutions for specific requirements.

Contact Sales

Features

data standards

100BASE-T1000BASE-T

shielding

Optimized for Ethernet

transmission

High-speed data

Technical Specifications

10 points

Circuit number from 2-300
Operation speed: standard up to 250rpm
Circuit current:2A, 5A, 10A, 15A up to 400A
Power channels and ethernet circuts
Contact material silver to silver coating
Standard temperature is -20°C to +80°C
Insulation strength 500V AC@50HZ 60S
Insulation resistant 500MΩ 500VDC
Protection grade IP 51, IP65
Both capsule and through bore slip rings are available

Options

7 options

Number of Circuits: 1–96 circuits
Signal Types:
- Serial communication:RS232,RS422, RS485
- Industrial bus:CANBus, Profibus,Lonworks
- Ethernet: 100M Base-T,1000M Base-T
Connector Type: Standard RJ45 connector, industrial connector, etc.
Wire Type, Gauge & Length: Customizable
High Voltage / High Current: Customizable
Special Conditions: High temperature, shockproof
Test Standards: CAT5, CAT5e, CAT6

Electrical Data

9 specs

Specification	Values
Rated Voltage	240VAC / VDC
Rated Current	2A/ring
Lead Size	CAT5, CAT5e, CAT6, CAT7
Lead Length	Standard 500mm
Insulation Resistance	≥500MΩ / 500VDC
Dielectric Strength	500VAC@50Hz, 60s
Electrical Noise	≤10mΩ
BER	10⁻¹¹
Insert Loss	≤2dB

Mechanical Data

9 specs

Specification	Values
Circuits	1 or more
Operating Speed	0 ~ 250 / 500rpm
Temperature Range	−20°C ~ +80°C
Operating Humidity	60%RH or higher
Contact Material	Precious Metals
Housing Material	Engineering Plastics or Metals
Through Bore Diameter	12.7mm, 25.4mm, 38.1mm, 50mm (other sizes customizable)
Outside Diameter	54mm, 78mm, 99mm, 120mm (other sizes customizable)
Protection Level	Standard: IP51, Optional: IP54, IP65

Locked

Electrical & Mechanical Data

Add your email to unlock electrical data & mechanical data for Ethernet Slip Ring.

We use your email only to follow up on this enquiry.

About Electrical Rotary Joints (Slip Rings)

Powering Continuous Rotation. Essential electromechanical devices that enable continuous, unrestricted rotation while maintaining secure and stable electrical connections.

A slip ring is an electrical connector designed to conduct current or data across a rotating interface, replacing the need for dangling wires that would inevitably twist and break.

Key components

Rings: Circular, conductive tracks (usually made of copper or a precious metal alloy) mounted on the rotor (the rotating part)
Brushes: Stationary, conductive contacts (often graphite, carbon fiber, or a precious metal alloy) that rest on the rings and transfer the electrical current or signal
Housing/Stator: The fixed enclosure that holds the brushes and provides the mounting points for the stationary side

Typical applications

Packaging Machinery: Transmitting power and control signals to rotating sealing heads or label applicators
Cranes & Winches: Providing power and control signals to the rotating drum or trolley
Robotics & Automation: Enabling unlimited joint movement in multi-axis robots without damaging wiring
Turrets & Indexing Tables: Supplying power and control for precision positioning systems
Wind Turbines: Transmitting pitch-control signals and monitoring data from the rotating hub to the nacelle
Medical Equipment (e.g., CT Scanners): Handling high-speed data transfer and power delivery during continuous rotation
