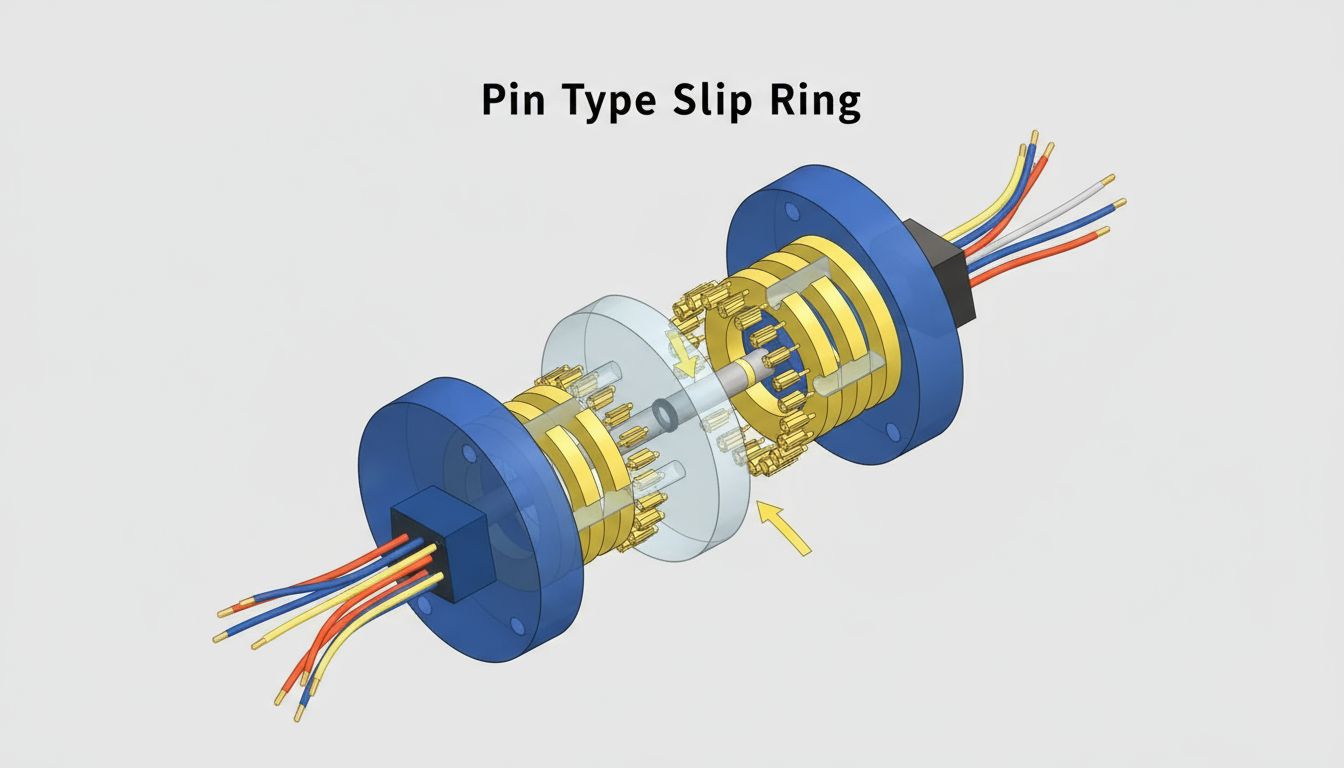

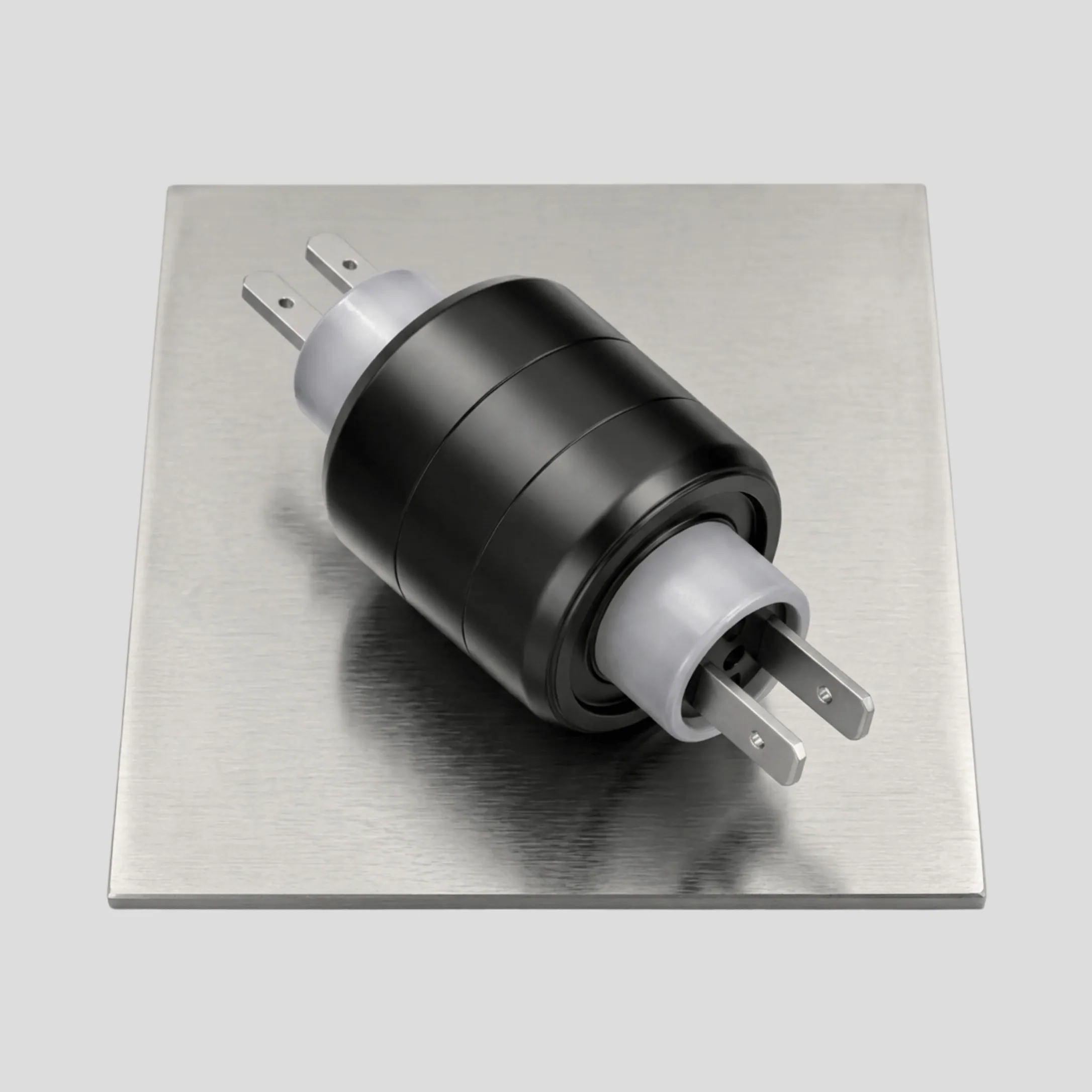

Pin Type Slip Ring (SRP Series)
Simple, modular design where contact is made via pins pressed against a groove or track.
Features
- Simple, modular design
- Pin contact mechanism
- Groove or track interface
- Cost-effective solution
- Basic power/signal transfer
Need Customization?
We offer customized solutions for specific requirements.
Pin Type — Model Selection
5 models| Type | No. of Circuits | Rated Current Amps | Outline Dimension OD × L | Pin Thickness × Width | |||
|---|---|---|---|---|---|---|---|
| 2A | 5A | 15A | 20A | ||||
| SRC032-2 | 2 | – | – | 2 | – | Φ32 × 28 | 0.8 × 6.3 |
| SRC032-3 | 3 | – | – | 3 | – | Φ32 × 28 | 0.8 × 6.3 |
| SRC032-4 | 4 | 2 | – | 2 | – | Φ32 × 28 | 0.8 × 6.3 0.8 × 2.8 |
| SRC045-6 | 6 | – | 2 | – | 6 | Φ45 × 64.5 | 0.8 × 6.3 |
| SRC045-8 | 8 | – | 2 | – | 6 | Φ45 × 64.5 | 0.8 × 6.3 / 0.8 × 2.8 |
Technical Specifications
7 points- Easy Electrical Connection with flat-pin design
- High Current Carrying Capacity
- Mercury-Free Design – a reliable alternative to mercury slip rings
- Precision-Engineered Construction for manufacturing applications
- Gold-Plated Rings
- Gold-Alloy Brushes for stable and durable performance
- Compact & Practical Pin Connection for simplified installation and wiring
Features
Locked
Electrical & Mechanical Data
Add your email to unlock electrical data & mechanical data for Pin Type Slip Ring (SRP Series).
We use your email only to follow up on this enquiry.
About Electrical Rotary Joints (Slip Rings)
Powering Continuous Rotation. Essential electromechanical devices that enable continuous, unrestricted rotation while maintaining secure and stable electrical connections.
A slip ring is an electrical connector designed to conduct current or data across a rotating interface, replacing the need for dangling wires that would inevitably twist and break.
Key components
- Rings
- Circular, conductive tracks (usually made of copper or a precious metal alloy) mounted on the rotor (the rotating part)
- Brushes
- Stationary, conductive contacts (often graphite, carbon fiber, or a precious metal alloy) that rest on the rings and transfer the electrical current or signal
- Housing/Stator
- The fixed enclosure that holds the brushes and provides the mounting points for the stationary side
Typical applications
- Packaging Machinery: Transmitting power and control signals to rotating sealing heads or label applicators
- Cranes & Winches: Providing power and control signals to the rotating drum or trolley
- Robotics & Automation: Enabling unlimited joint movement in multi-axis robots without damaging wiring
- Turrets & Indexing Tables: Supplying power and control for precision positioning systems
- Wind Turbines: Transmitting pitch-control signals and monitoring data from the rotating hub to the nacelle
- Medical Equipment (e.g., CT Scanners): Handling high-speed data transfer and power delivery during continuous rotation
