SRP Series

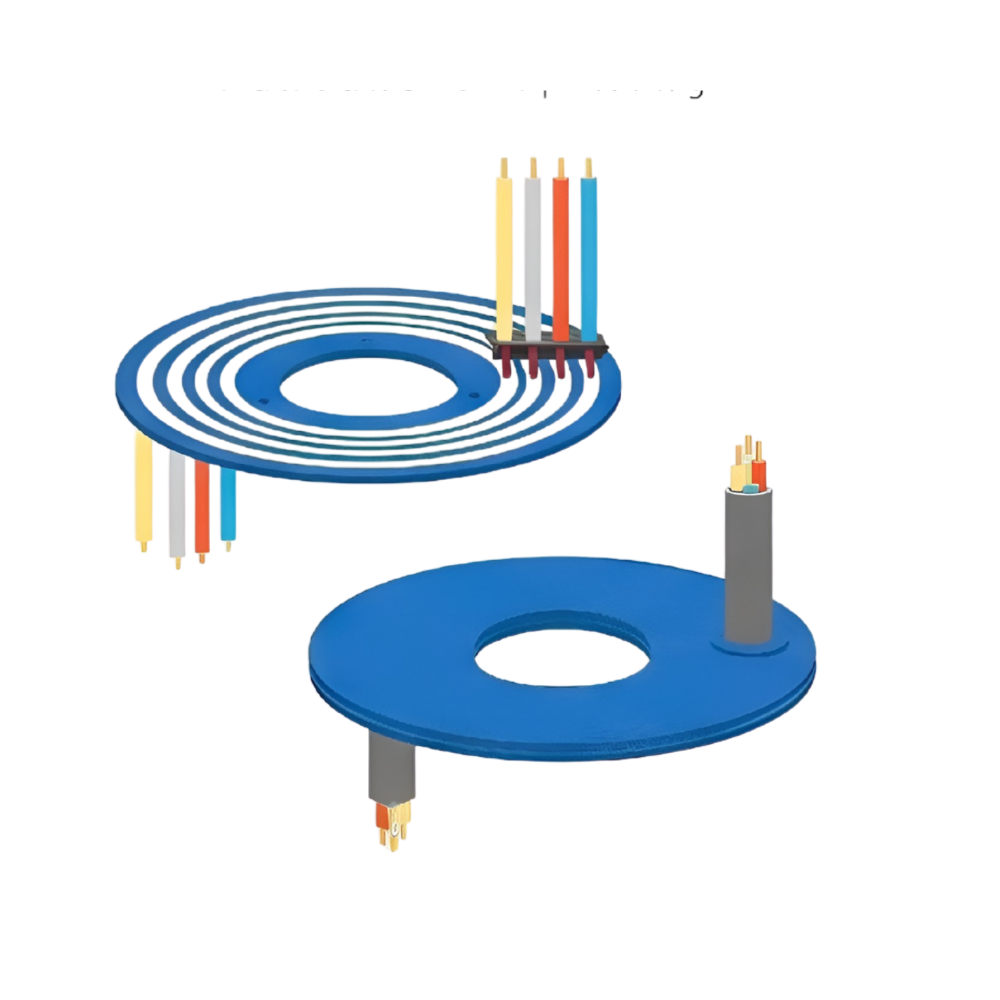

Pancake Slip Ring (SRP Series)

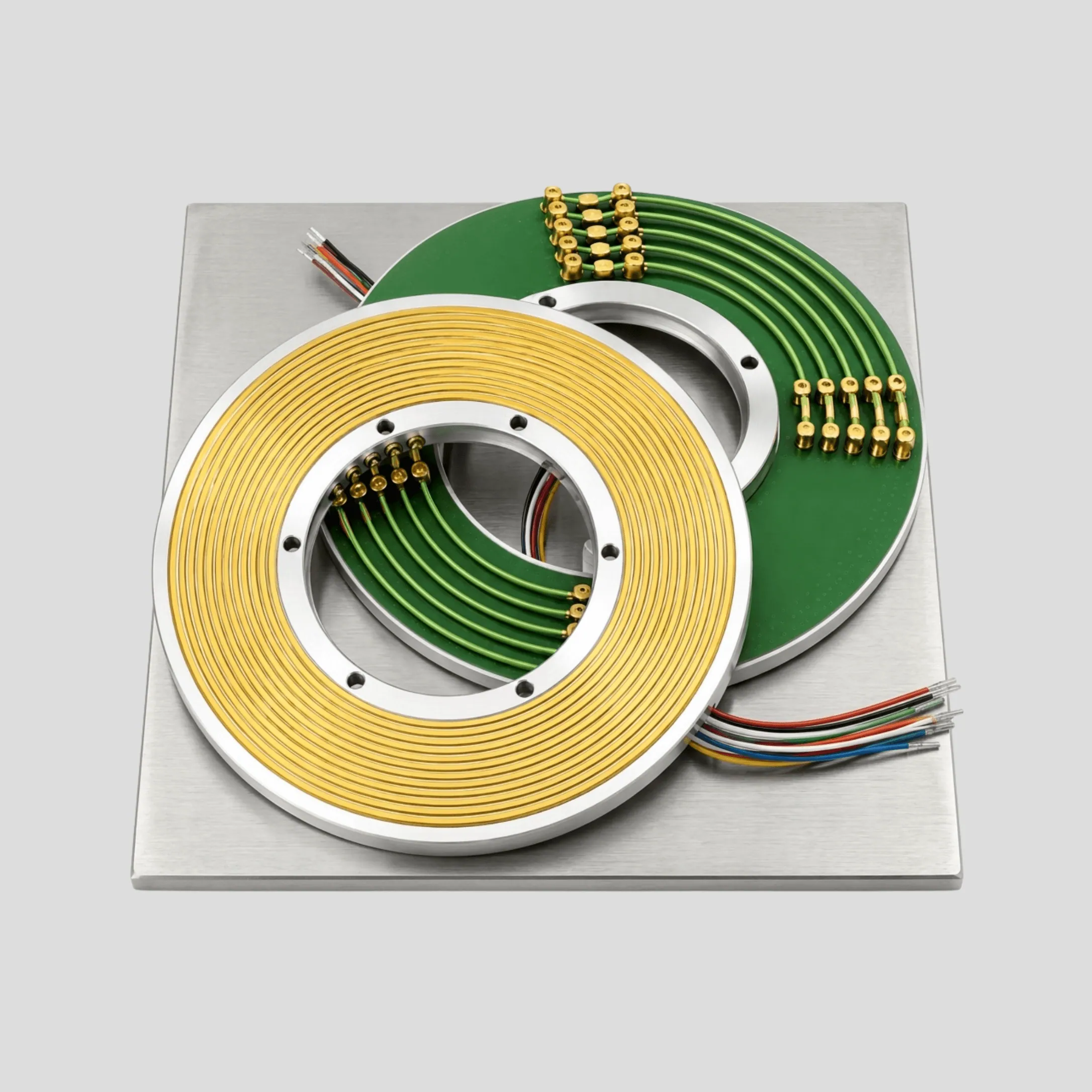

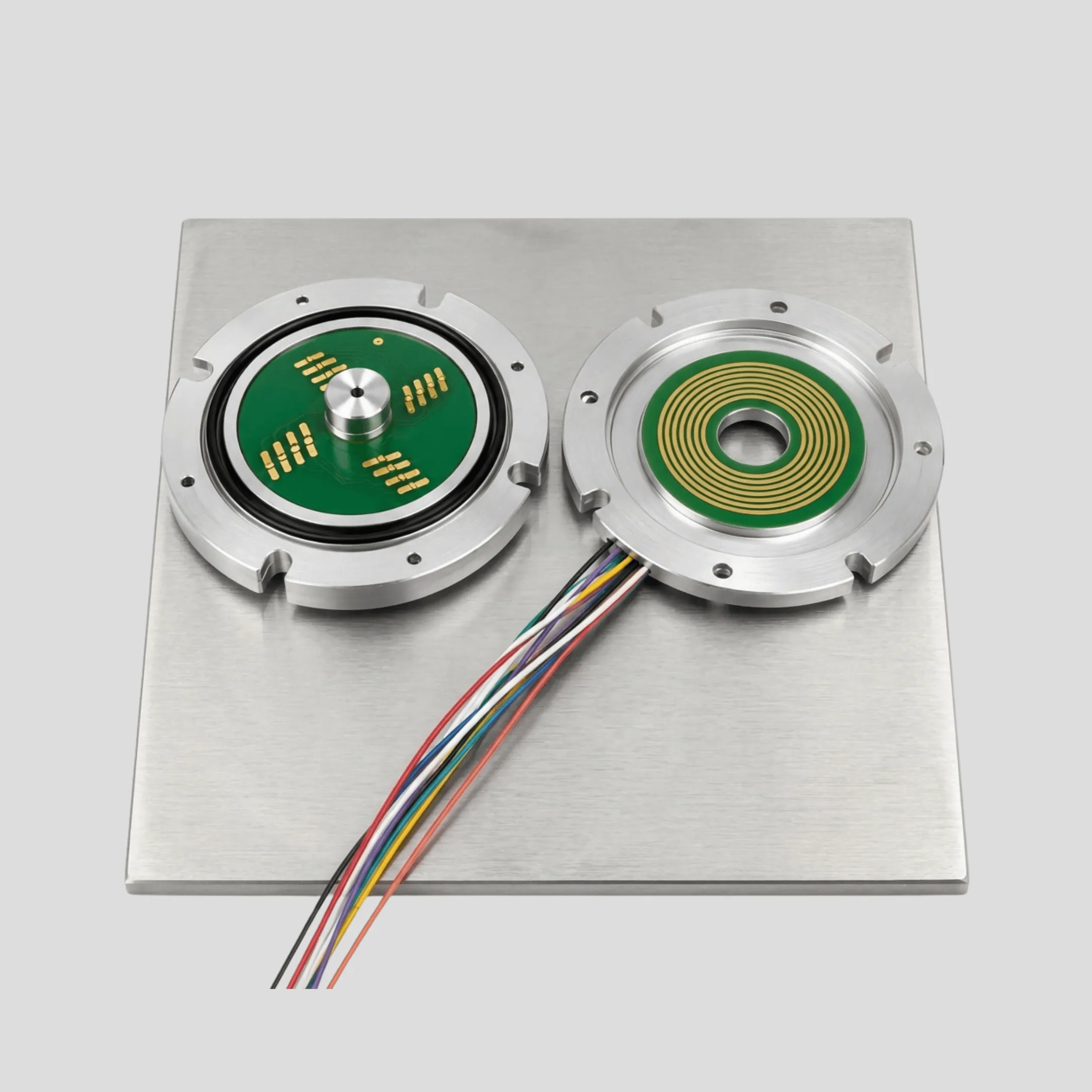

Flat, disc-shaped structure; rings are concentric on a flat plane. Very short axial length.
Features
- Flat, disc-shaped structure
- Concentric rings on flat plane
- Very short axial length
- Space-efficient design
- Low profile configuration
Applications
Need Customization?
We offer customized solutions for specific requirements.
Technical Specifications
About Electrical Rotary Joints (Slip Rings)
Powering Continuous Rotation. Essential electromechanical devices that enable continuous, unrestricted rotation while maintaining secure and stable electrical connections.
A slip ring is an electrical connector designed to conduct current or data across a rotating interface, replacing the need for dangling wires that would inevitably twist and break.
Key components
- Rings
- Circular, conductive tracks (usually made of copper or a precious metal alloy) mounted on the rotor (the rotating part)
- Brushes
- Stationary, conductive contacts (often graphite, carbon fiber, or a precious metal alloy) that rest on the rings and transfer the electrical current or signal
- Housing/Stator
- The fixed enclosure that holds the brushes and provides the mounting points for the stationary side
Typical applications
- Packaging Machinery: Transmitting power and control signals to rotating sealing heads or label applicators
- Cranes & Winches: Providing power and control signals to the rotating drum or trolley
- Robotics & Automation: Enabling unlimited joint movement in multi-axis robots without damaging wiring
- Turrets & Indexing Tables: Supplying power and control for precision positioning systems
- Wind Turbines: Transmitting pitch-control signals and monitoring data from the rotating hub to the nacelle
- Medical Equipment (e.g., CT Scanners): Handling high-speed data transfer and power delivery during continuous rotation
