Planetary Gearbox
A compact transmission system consisting of a central sun gear, multiple planet gears mounted on a carrier, and an outer ring gear. Designed for high torque transmission and speed reduction in a small footprint.
FAB Series
High-precision planetary gearbox designed for demanding applications requiring accurate motion control and high torque density.

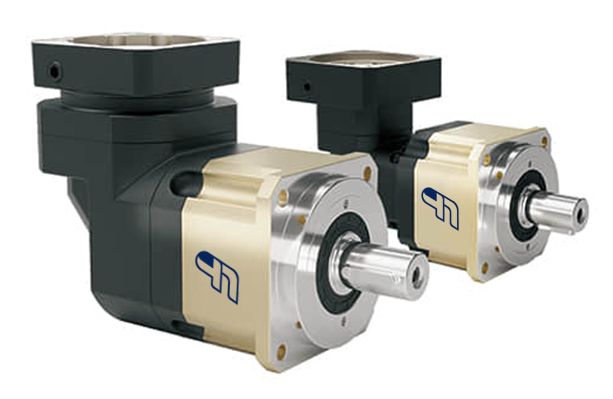

FABR Series
Enhanced FAB series with additional features for improved performance and reliability in demanding applications.

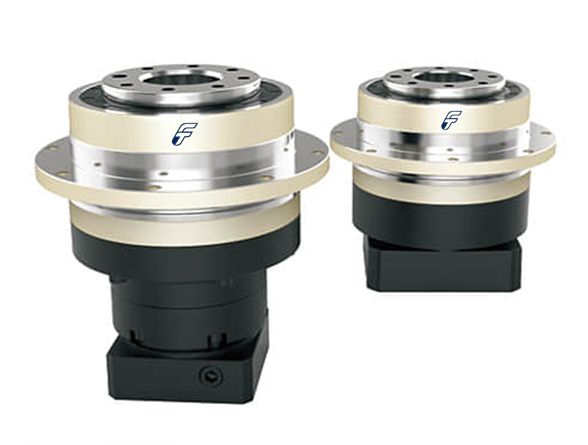

FAD Series
Specialized planetary gearbox designed for applications requiring specific torque and speed characteristics.

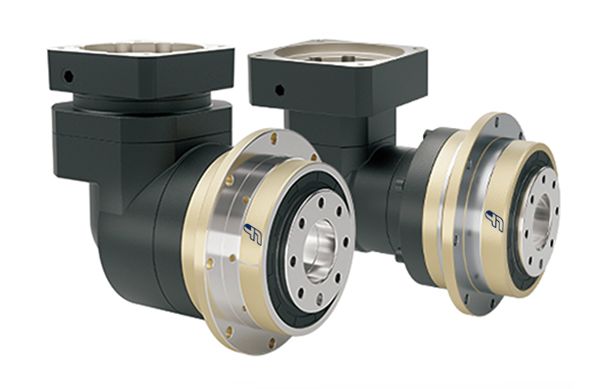

FADR Series
Advanced FAD series with enhanced features for improved performance in specialized applications.

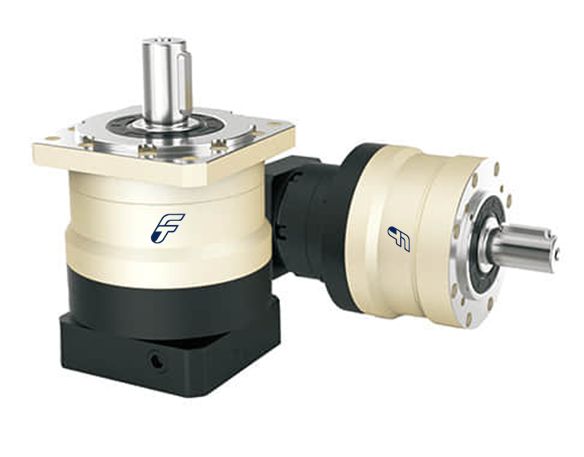

FB Series
Robust planetary gearbox series designed for industrial applications requiring high reliability and performance.

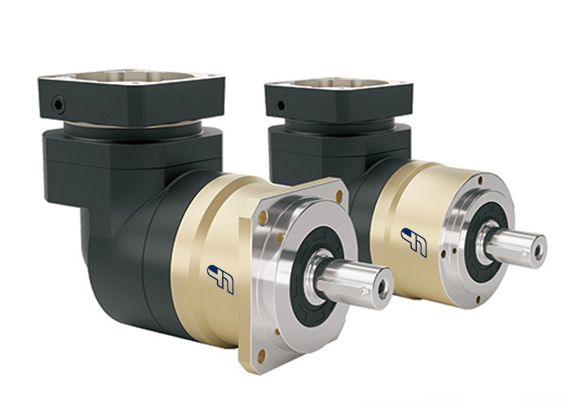

FBR Series
Enhanced FB series with improved features for demanding industrial applications.
FE Series
Efficient planetary gearbox series optimized for energy-conscious applications.
FER Series
Enhanced FE series with additional features for improved efficiency and performance.
FG Series
General-purpose planetary gearbox series suitable for a wide range of industrial applications.

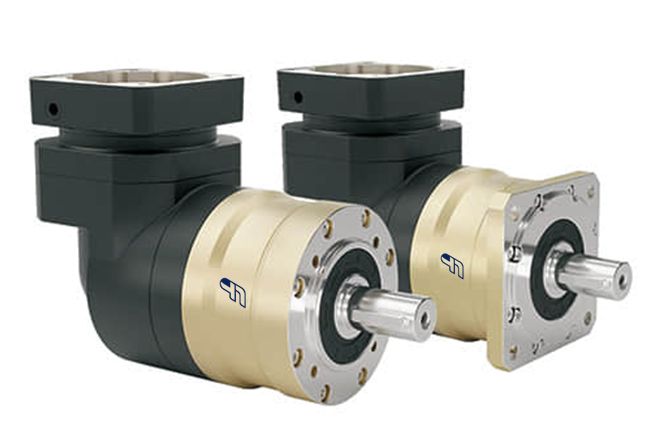

FGR Series
Enhanced FG series with improved features for demanding general-purpose applications.
FGA Series
Advanced planetary gearbox series designed for high-performance applications.
FGAR Series
Enhanced FGA series with additional features for the most demanding applications.
FAF Series
Specialized planetary gearbox series for specific application requirements.

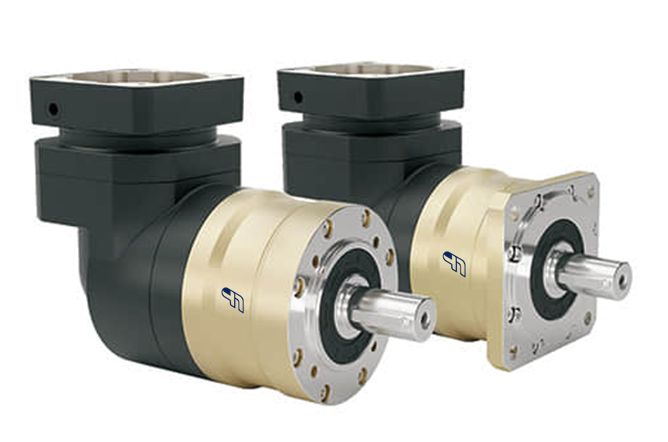

FAFR Series
Enhanced FAF series with improved features for specialized applications.

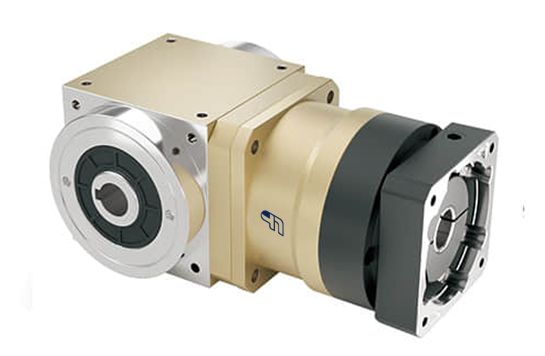

FAT Series
Tactical planetary gearbox series designed for precision applications requiring exceptional accuracy.
About Planetary Gearbox
Key features
- High torque density due to load distribution across multiple planet gears
- Compact, coaxial design with concentric input and output shafts saves space
- High transmission efficiency, up to 97% per stage
- Low backlash (as low as 1 to 3 arc-minutes) ensuring precise motion control
- Available in single, double, or triple stage configurations for flexible gear ratios (e.g., from 3:1 up to 100:1 or higher)
- Durable helical gears reduce noise and vibration while enhancing lifespan
- Lifetime lubrication and IP65 protection for reliable, maintenance-free operation
- Operation temperature range typically -10°C to +90°C
Performance and materials
- Noise level
- Below 65 dB
- Backlash
- Under 1 arcminute (up to 3 arcminutes for 2-stage)
- Efficiency
- >95% single-stage, >92% two-stage
- Max input speed
- Up to 8000 RPM
- Speed reduction ratios
- Exceeding 1:1000
Typical applications
- Military industry
- Medical health, electronic information industry
- Industrial robots, production automation
- Motor, textile, printing, food, metallurgical, environmental protection engineering
- Warehouse logistics industry
