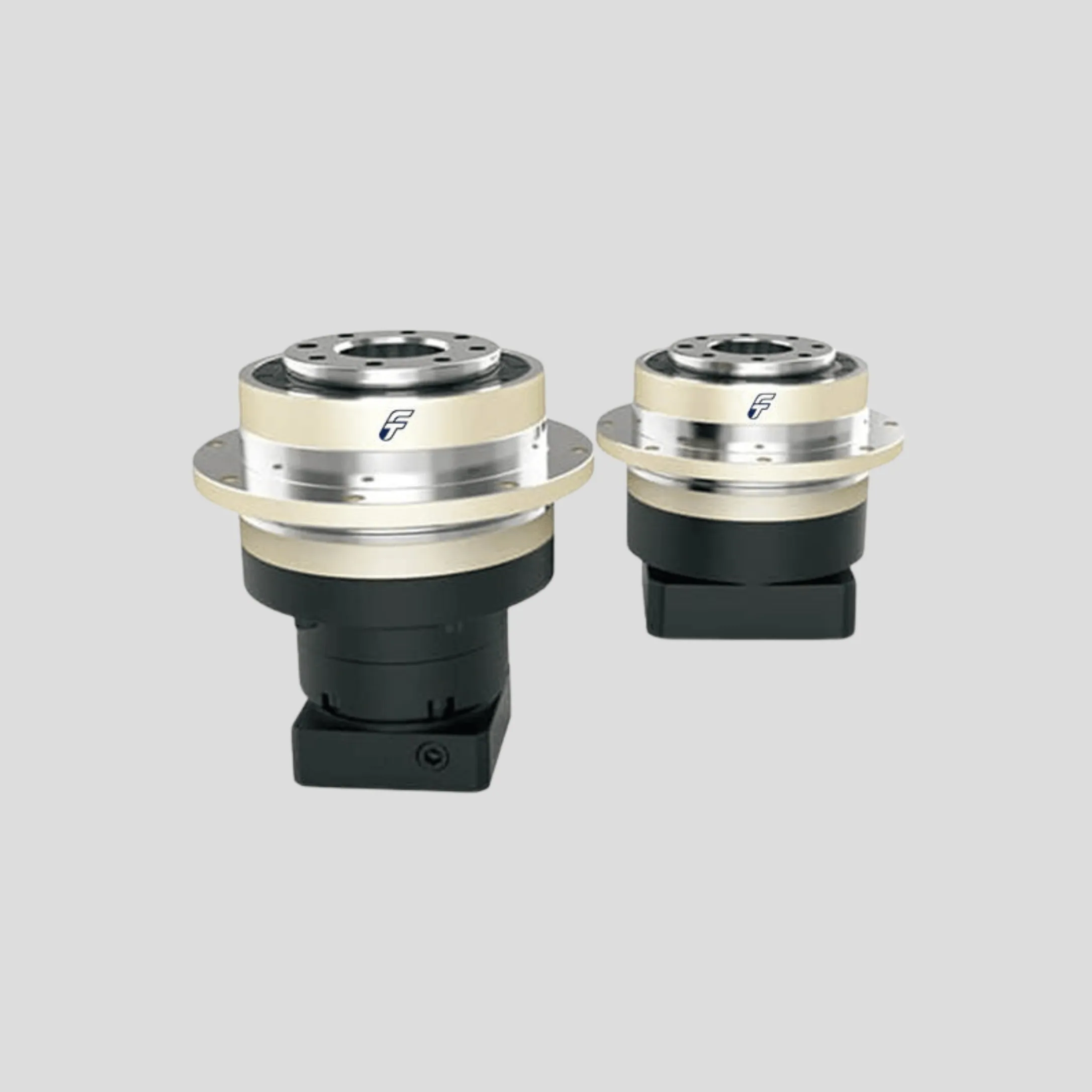

FAD Series
FAD Series
Specialized planetary gearbox designed for applications requiring specific torque and speed characteristics.
Features
- Specialized torque characteristics
- Optimized speed ratios
- Compact design
- High efficiency
- Reliable operation
Need Customization?
We offer customized solutions for specific requirements.
Technical Specifications
single stage4/5/6/7/8/10
dual level20/25/35/40/50/60/70/80/100
single stage≤1, ≤3, ≤5 arcmin
dual level≤3, ≤5, ≤7 arcmin
About Planetary Gearbox
A compact transmission system consisting of a central sun gear, multiple planet gears mounted on a carrier, and an outer ring gear. Designed for high torque transmission and speed reduction in a small footprint.
Key features
- High torque density due to load distribution across multiple planet gears
- Compact, coaxial design with concentric input and output shafts saves space
- High transmission efficiency, up to 97% per stage
- Low backlash (as low as 1 to 3 arc-minutes) ensuring precise motion control
- Available in single, double, or triple stage configurations for flexible gear ratios (e.g., from 3:1 up to 100:1 or higher)
- Durable helical gears reduce noise and vibration while enhancing lifespan
- Lifetime lubrication and IP65 protection for reliable, maintenance-free operation
- Operation temperature range typically -10°C to +90°C
Performance and materials
- Noise level
- Below 65 dB
- Backlash
- Under 1 arcminute (up to 3 arcminutes for 2-stage)
- Efficiency
- >95% single-stage, >92% two-stage
- Max input speed
- Up to 8000 RPM
- Speed reduction ratios
- Exceeding 1:1000
Typical applications
- Military industry
- Medical health, electronic information industry
- Industrial robots, production automation
- Motor, textile, printing, food, metallurgical, environmental protection engineering
- Warehouse logistics industry
