Worm Gearbox

Precision worm gearboxes designed for high accuracy and reliable power transmission.

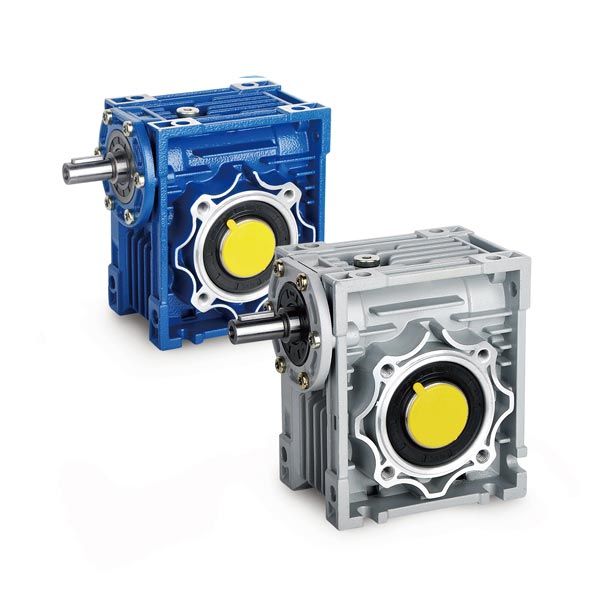

RV Series - Front View
Worm Gearbox

RV Series

Standard worm gearbox series with reliable performance and versatile mounting options. Features lightweight, corrosion-resistant aluminium alloy construction.

View Details
RVE Series - Front View
Worm Gearbox

RVE Series

Enhanced version of RV series with improved efficiency and extended service life. Maintains all the benefits of RV series with additional performance enhancements.

View Details
NRV Series - Front View
Worm Gearbox

NRV Series

Compact worm gearbox design for space-constrained applications. Optimized for installations where space is at a premium.

View Details
NRV-E Series - Front View
Worm Gearbox

NRV-E Series

Enhanced NRV series with optimized performance characteristics. Combines the compact design of NRV with improved efficiency, and performance.

View Details

About Worm Gearbox

Key features

  • Lightweight, corrosion-resistant aluminium alloy construction
  • High output torque
  • Smooth, quiet operation for long-lasting performance in harsh conditions
  • Excellent heat dissipation
  • Compact, durable, and visually appealing
  • Suitable for installation in any orientation

Performance and materials

Housing
Die-cast aluminum alloy for frame sizes 025 to 090; cast iron for frame sizes 110 to 150
Worm
Made from 20Cr steel with carbonizing and quenching heat treatment, achieving surface hardness of 56-62HRC
Worm wheel
Constructed from wear-resistant tin bronze alloy
Aluminum alloy
Shot blasting and specialized anti-corrosive treatment, followed by RAL5010 blue or silvery white finish
Cast iron
Red anti-rust primer, followed by white, RAL5010 blue, or silvery white final coat
