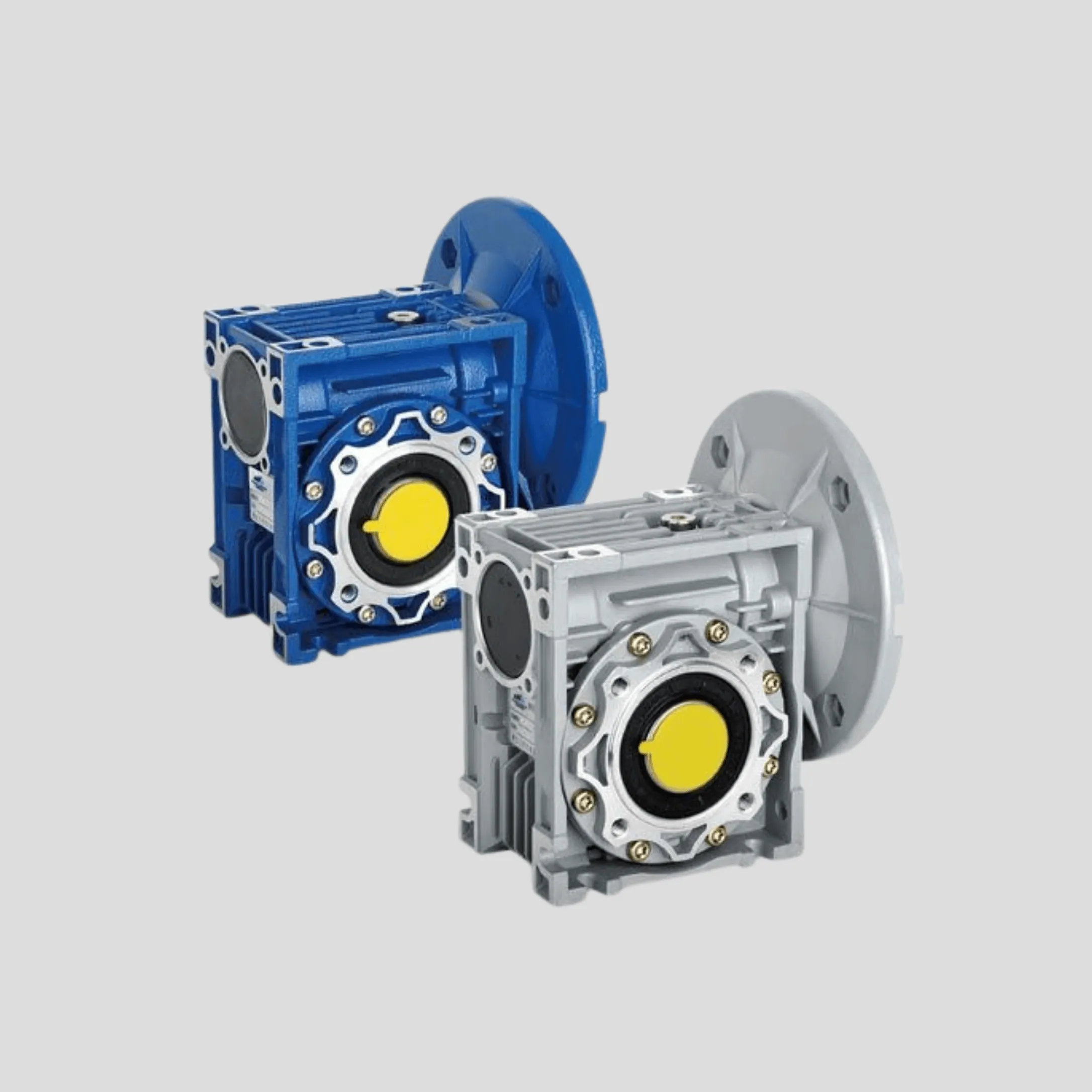

Standard worm gearbox series with reliable performance and versatile mounting options. Features lightweight, corrosion-resistant aluminium alloy construction.
Features
- Lightweight aluminium alloy construction
- Corrosion-resistant
- High output torque
- Smooth, quiet operation
- Excellent heat dissipation
- Versatile mounting options
Need Customization?
We offer customized solutions for specific requirements.
Technical Specifications
RV Series Dimensions (mm)
9 rows| RV | A | B | D | C1 | D (Ø6) | E (Ø6) | F | G | G1 | H | H1 | I | M | N | O | P | Q | R | S | T | BL | B | b | t | V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 030 | 80 | 97 | 54 | 44 | 14 | 55 | 32 | 56 | 43 | 65 | 29 | 55 | 40 | 57 | 30 | 75 | 44 | 6 | 21 | 5.5 | M6X10 (n=4) | 0° | 5 | 16.3 | 27 |
| 040 | 100 | 121.5 | 70 | 50 | 18 (19) | 60 | 43 | 71 | 78 | 75 | 36.5 | 70 | 50 | 71.5 | 40 | 87 | 55 | 6.5 | 26 | 6.5 | M6X10 (n=4) | 45° | 6 | 20.8 (21.8) | 35 |
| 050 | 120 | 144 | 80 | 70 | 25 (24) | 70 | 49 | 85 | 92 | 85 | 43.5 | 80 | 60 | 84 | 50 | 100 | 64 | 8.5 | 30 | 7 | M8X12 (n=4) | 45° | 8 | 28.3 (27.3) | 40 |
| 063 | 144 | 174 | 100 | 85 | 25 (28) | 80 | 67 | 103 | 112 | 95 | 53 | 95 | 72 | 102 | 63 | 110 | 80 | 8.5 | 36 | 8 | M8X12 (n=4) | 45° | 8 | 28.3 (31.3) | 50 |
| 075 | 172 | 205 | 120 | 90 | 28 (35) | 95 | 72 | 112 | 120 | 115 | 57 | 112.5 | 86 | 119 | 75 | 140 | 93 | 11 | 40 | 10 | M8X14 (n=8) | 45° | 10 | 31.3 (38.3) | 60 |
| 090 | 206 | 238 | 140 | 100 | 35 (38) | 110 | 74 | 130 | 140 | 130 | 67 | 129.5 | 103 | 135 | 90 | 160 | 102 | 13 | 45 | 11 | M10X16 (n=8) | 45° | 10 | 38.3 (41.3) | 70 |
| 110 | 255 | 295 | 170 | 115 | 42 | 130 | — | 144 | 155 | 165 | 74 | 160 | 127.5 | 167.5 | 110 | 200 | 125 | 14 | 50 | 14 | M10X18 (n=8) | 45° | 12 | 45.3 | 85 |
| 130 | 293 | 335 | 200 | 120 | 45 | 180 | — | 155 | 170 | 215 | 81 | 179 | 146.5 | 187.5 | 130 | 250 | 140 | 16 | 60 | 15 | M12X20 (n=8) | 45° | 14 | 48.8 | 100 |
| 150 | 340 | 400 | 240 | 145 | 50 | 180 | — | 185 | 200 | 215 | 96 | 210 | 170 | 230 | 150 | 250 | 180 | 18 | 72.5 | 18 | M12X22 (n=8) | 45° | 14 | 53.8 | 120 |
About Worm Gearbox
Precision worm gearboxes designed for high accuracy and reliable power transmission.
Key features
- Lightweight, corrosion-resistant aluminium alloy construction
- High output torque
- Smooth, quiet operation for long-lasting performance in harsh conditions
- Excellent heat dissipation
- Compact, durable, and visually appealing
- Suitable for installation in any orientation
Performance and materials
- Housing
- Die-cast aluminum alloy for frame sizes 025 to 090; cast iron for frame sizes 110 to 150
- Worm
- Made from 20Cr steel with carbonizing and quenching heat treatment, achieving surface hardness of 56-62HRC
- Worm wheel
- Constructed from wear-resistant tin bronze alloy
- Aluminum alloy
- Shot blasting and specialized anti-corrosive treatment, followed by RAL5010 blue or silvery white finish
- Cast iron
- Red anti-rust primer, followed by white, RAL5010 blue, or silvery white final coat
